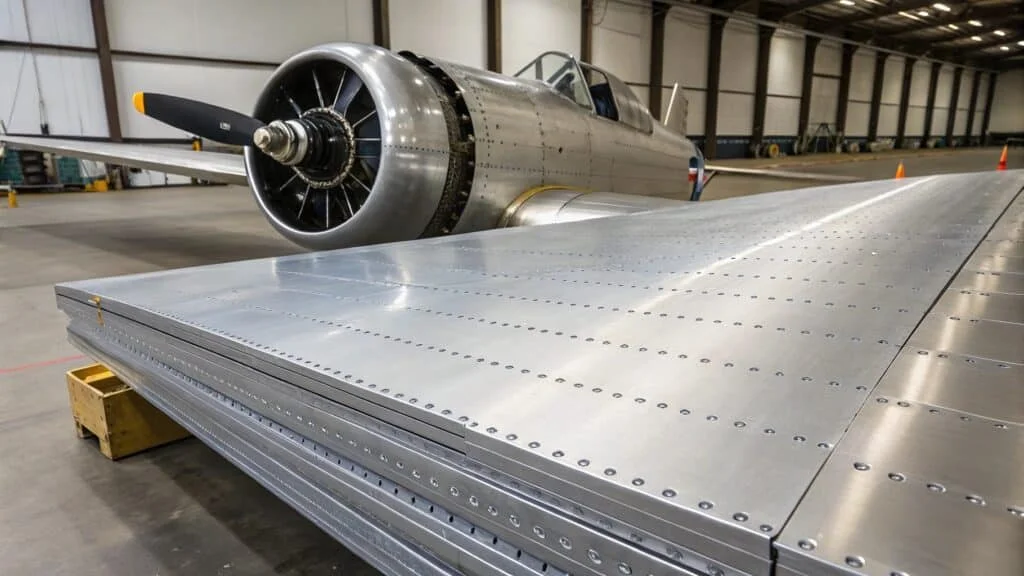

Materials Corner: Decoding the Top Aerospace Aluminum Alloys
As an aerospace machine shop operating in the heart of Los Angeles, we see thousands of RFQs cross our desks every year. While exotic superalloys like Inconel and titanium often steal the spotlight in modern engineering, the true backbone of modern aviation and commercial spaceflight remains aerospace-grade aluminum. Its unparalleled strength-to-weight ratio, cost-effectiveness, and reliable machinability make it an indispensable material.
However, for procurement managers and design engineers, specifying “aluminum” is never enough. Not all aluminum alloys are created equal. Choosing the wrong series can lead to catastrophic fatigue failures in flight, or costly manufacturing bottlenecks on the CNC machine floor.
In this edition of Materials Corner, we are going beyond the basic callouts to compare and contrast the technical specifications of the most common aerospace aluminum alloys. Here is what you need to know when sourcing your next machined component.
Aluminum 7075: The Structural Heavyweight
When buyers think of “aerospace aluminum,” 7075 is usually the first alloy that comes to mind. Alloyed primarily with zinc, 7075-T6 offers a massive ultimate tensile strength of roughly 83,000 psi and a yield strength of 73,000 psi. This makes it comparable to many steels but at a fraction of the weight.
-
Best For: Highly stressed structural parts, aircraft fittings, gears, missile components, and defense hardware.
-
The Trade-off: Immense strength comes at a cost. 7075 has lower corrosion resistance than the 6000-series alloys and is notoriously difficult to weld. Furthermore, its hardness makes it slightly more abrasive on CNC cutting tools, requiring a machine shop to optimize feeds and speeds to maintain tight aerospace tolerances.
Aluminum 6061: The Versatile Workhorse
If 7075 is the high-performance specialist, 6061 is the reliable generalist. Alloyed with magnesium and silicon, 6061-T6 is the most widely used aluminum alloy across all manufacturing sectors, including aerospace. Its yield strength sits at a more modest 40,000 psi, but what it lacks in pure muscle, it makes up for in seamless manufacturability.
-

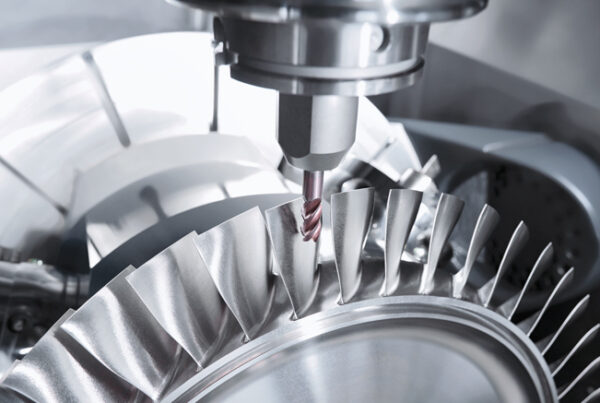

Best For: Custom brackets, electronic housings, secondary structural components, and complex parts requiring extensive 5-axis CNC milling.
-
The Trade-off: It simply cannot match the load-bearing capabilities of the 2000 or 7000 series. However, 6061 boasts excellent corrosion resistance, superior machinability, and is highly weldable—making it a favorite for engineers looking to reduce production costs on non-critical flight components.
Aluminum 2024: The Fatigue Fighter
Aircraft experience thousands of pressurization, takeoff, and landing cycles, meaning material fatigue is a major concern. Enter 2024. Alloyed primarily with copper, 2024-T3 boasts excellent fatigue resistance and a high strength-to-weight ratio, with a yield strength of around 50,000 psi.
-
Best For: Fuselage structures, wing tension members, and shear webs where cyclical loading and vibration are constant factors.
-
The Trade-off: The high copper content that gives 2024 its fatigue resistance also makes it highly susceptible to corrosion. It is rarely used without a protective coating or cladding (often referred to as Alclad). Like 7075, it is also generally considered non-weldable, meaning parts must be mechanically fastened.
Aluminum 7050: The Thick-Section Champion
While 7075 is incredible for standard components, it suffers from “quench sensitivity.” This means that in very thick sections (typically over 3 inches), it loses its mechanical properties toward the center of the material during the heat-treating process. Aluminum 7050 solves this problem. By adjusting the specific ratios of zinc, copper, and magnesium, 7050 maintains its high strength, stress-corrosion cracking resistance, and toughness even in massive plate and forging applications.
-
Best For: Bulkheads, thick fuselage frames, and large monolithic structural parts machined from massive raw billets.
-
The Trade-off: 7050 is generally more expensive to procure than 7075 and is typically reserved for heavy commercial aviation or defense platforms where thick-section strength is absolutely mandatory.
Temper Designations: The Hidden Half of the Spec
When sourcing machined parts, the alloy number is only half the story. The suffix (e.g., the “-T6” in 7075-T6) denotes the temper, which dictates the specific heat-treatment process the material has undergone. You can have two identical blocks of 7075, but if one is -O (annealed) and the other is -T6, they will machine entirely differently.
-
-T6 (Solution heat-treated and artificially aged): The most common aerospace temper, providing peak strength and stability during machining.
-
-T3 (Solution heat-treated, cold worked, and naturally aged): Commonly seen with 2024, this retains high strength while improving resistance to fatigue and crack propagation.
-
-T73 (Solution heat-treated and overaged): Often used with 7075, this temper slightly reduces peak tensile strength but massively improves resistance to stress-corrosion cracking.
Compare and Contrast: Making the Right Call
Choosing between these alloys requires a careful balancing act by your engineering and procurement teams:
-
Strength vs. Corrosion Resistance: If pure ultimate tensile strength is the deciding factor, 7075 wins. If the part will be exposed to the elements and you want to avoid costly secondary plating operations, 6061 is the safer, more stable bet.
-
Cyclic Loading vs. Static Load: For landing gear or static structural fittings that hold massive stationary loads, 7075 is ideal. For wings that constantly flex during flight, the fatigue resistance of 2024 is required.
-
Machinability and Lead Times: 6061 is the most cost-effective to buy and the fastest to machine, saving money on both raw material and CNC spindle time. The 7000 and 2000 series take slightly longer to cut and require a highly experienced machinist to prevent part warping during heavy material removal.
In the aerospace manufacturing environment, every alloy behaves differently under the cutter. Partnering with a CNC machining supplier that intuitively understands the metallurgical quirks of these materials ensures your parts are cut exactly to print, delivered on time, and kept strictly within budget.
